QCAD - Package Details - repo.openpandora.org Repository of Software for the Open Pandora open source console - Games | Apps

QCADrelease

Back

Report

Rating:
(4 votes)

Website:www.qcad.org/

Maintainer:ptitSeb

Support:

Version:3.15.5.02

Filesize:90.42 Mb

Category:Graphics

Sub-Cat:VectorGraphics

Redistribute:Allowed

Added:Jul 6, 2013

Updated:Sep 9, 2016

Downloads:557

Package Author: ptitSeb

Description:

The CAD System For Everyone

QCAD is a free application for computer aided drafting in two dimensions (2d). With QCAD you can create technical drawings such as plans for buildings, interiors, mechanical parts or schematics and diagrams. QCAD works on Windows, Mac OS X and Linux (and now Pandora). The source code of QCAD is released under the GPL (Open Source).

QCAD was designed with modularity, extensibility and portability in mind. But what people notice most often about QCAD is its intuitive user interface. QCAD is an easy to use but powerful 2D CAD system for everyone. You don't need any CAD experience to get started with QCAD immediately. You can download QCAD today for free!

Main Features:

* Layers
* Blocks (grouping)
* 35 CAD fonts included
* Support for TrueType fonts
* Various Metrical and Imperial units
* DXF and DWG input and output
* Printing to scale
* Printing on multiple pages
* Over 40 construction tools
* Over 20 modification tools
* Construction and modification of points, lines, arcs, circles, ellipses, splines, polylines, texts, dimensions, hatches, fills, raster images
* Various powerful entity selection tools
* Object snaps
* Measuring tools
* Part library with over 4800 CAD parts
* Very complete and extremely powerful ECMAScript scripting interface

Download

Archived

Rate this application: Log in required.

Package Contents (1) (hide/show)

Additional Info

QCAD is a fully functional 2D CAD software, featuring localization in many languages, a large library of object. It use QT (and with OpenGLES2 hardware).

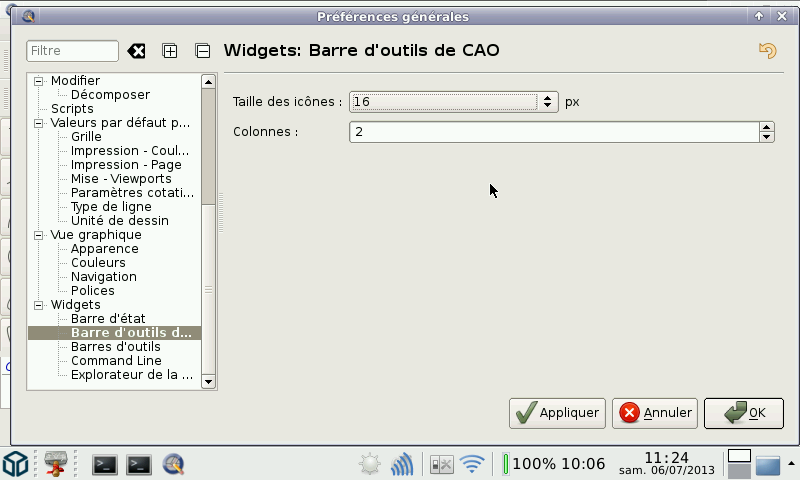

You should go in the Edit|General Preference to change icon size to 16 pixel to gain some space (many are at 32 pixel by default, and even 48 pixels).

History log
========
Build 02
----------
* Updated sources
* Updated libs (now using Qt 5.7.0).

Build 01
----------
* Initial build

A thread is open here: https://pyra-handheld.com/boards/threads/qcad.71793/
